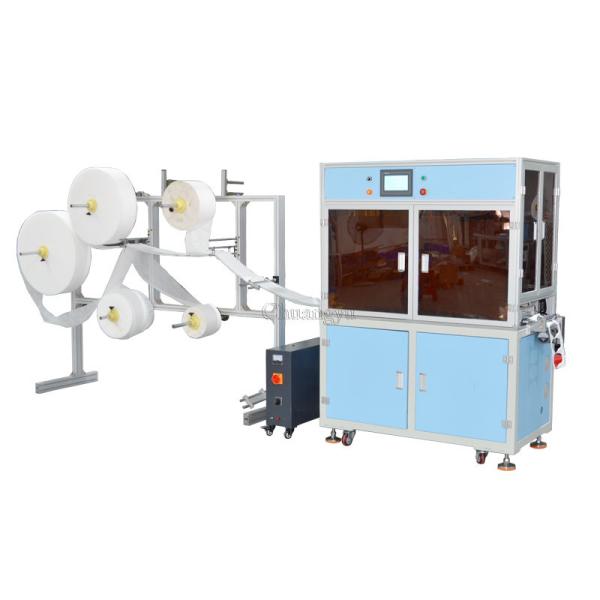

Full Electric Driven Exhale Filter Pads Making Machine Automatic
Description:
This filter pad making machine is used to produce dust mask filter
under high capacity, high-performance ultrasonic and ink jet
function is optional. And fully electric driven, makes the opertion
more easy and the meanwhile can produce more size product on one
machine just change die-cut mold.
Technical parameter :
| Model No.: | CY-LM501 Exhale Filter Pads Making Machine |
| Supply voltage | 110V / 60Hz 220V 50Hz |
| Max material width: | 160-220mm |
| Ultrasonic Power | 20khz, 2300W |
| Dimension: | 3900(L)x 700(W) x 1500(H) mm |
| Capacity: | 35-45 pcs/min |
| Power | 7000W |
| Ultrasonic Frequency | 15Khz, 4500W |
Forming Samples:
Features of Automatic Filter Pad Forming Machine:
1. Pull tube feeding, positioning is more accurate, it can control
to a minimum width of raw materials and save cost.
2. The length of product is controlled of uniform size, deviation ±
1mm, it can effectively control the product length, the slice of
product not only to meet the production process requirements, but
also eliminate the waste.
3. Independent feeding shelf, easy to operate and adjust the raw
material
4. High degree of automation, low requirement of worker, just needs
to put on the raw material to the machine and take out the
finished.
5. Automatic counting, can active control production efficiency and
production schedule.
6. Inverter control, the production speed can be adjusted according
to the request.
7. Rotary control box, the direction of the control box can be
adjusted according to the request.
8. Automatic scraps collection, reduce the workload.
9. Machine frame adopt alloy aluminum, beautiful shape and not
rust.
10. Adopt Taiwan ultrasonic system, best China made ultrasonic horn
.
11. Adopt high quality 750 inverter, stable performance, and easy
to operate.
12. Adopt inverter control, equipped photoelectric detector, and
make the cutting angle more stable.
13. Automatic ultrasonic welding roller is made of high quality
steel DC53, Increasing the use life, and more durability.
14. The ultrasonic mold is made of Cr12MoV material, compare to
common mould, it is more hardness, and suitable for long time
working, not easy out of shape.
